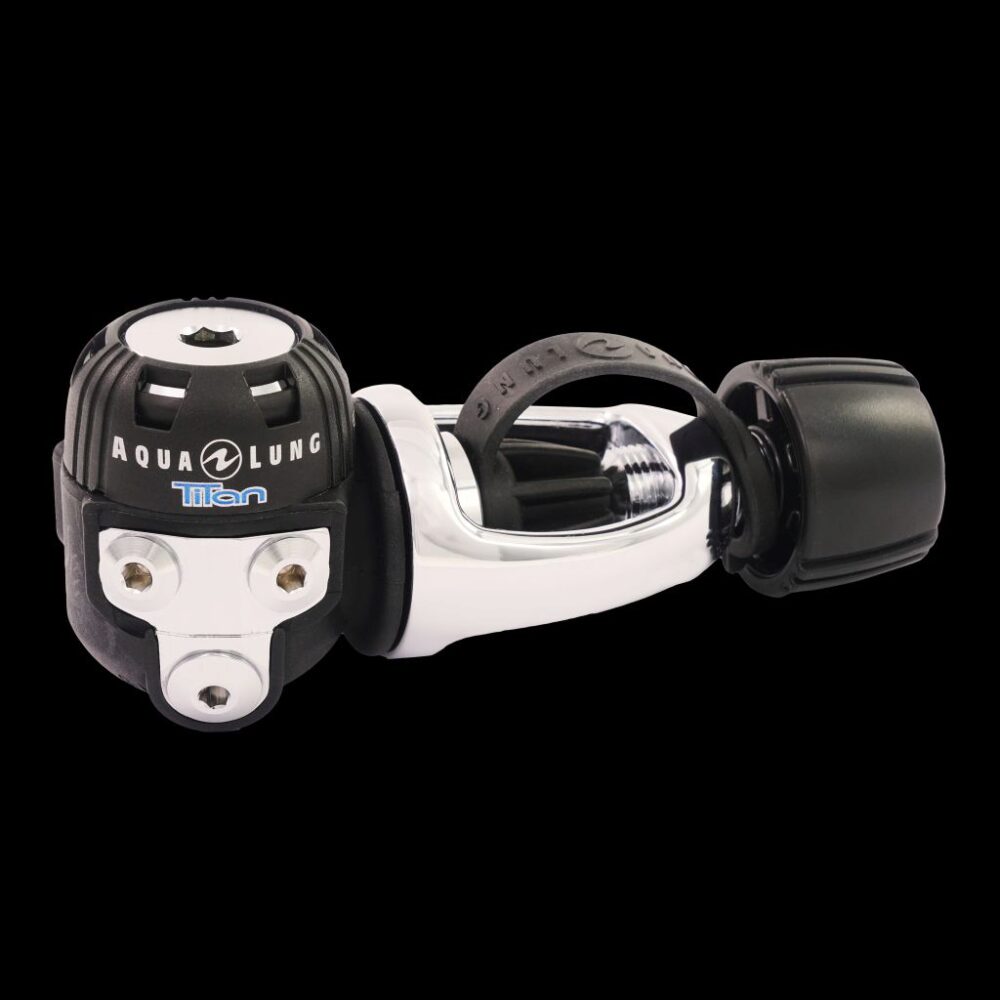

Titan

The third-generation Titan regulator brings new innovation while keeping its excellent value. The updated Titan regulator integrates the lightweight feel, rugged durability and easy-tobreathe functionality of its predecessors, while updating with a fresh design. It offers excellent performance and easy maintenance at an affordable price.

Specs

Firts Stage

• 1st Stage Technology                Diaphragm, balanced
• Mechanism                                   T-shape
• Wet chamberWet chamber        Yes
• Maximal Working                        Pressure300 bar in DIN version, 232 bar in yoke version
• ACD System                                    No
• Number of HP ports                    2 (7/16" UNF)
• Number of MP ports                    4 (3/8" UNF)
• Medium Pressure                           9.5 bar ± 0.5 bar (137 ±7 psi)
• Flow Rate (Surface, Hose)            1450 l/min (51.2 cubic feet/min) HP = 200 bar
• Body                                                Marine brass, bright chrome plating
• Shield protector                            Polyurethane
• Removable HP crown, spring    Stainless steel
• Conical Filter                                Sintered bronze

Second stage

2nd Stage Technology                                Unbalanced

Mechanism                                                    Demand valve, downstream poppet

Cracking Effort                                                   2.5 to 4 mbar (36 to 58 mpsi)

Venturi adjustment knob                                Yes

Box bottom, deflector, Venturi vane            ABS

Purge Cover                                                    Polyurethane

Mouthpiece, Exhaust Valve, Diaphragm    Silicone

Poppet                                                                Polyurethane

Adjustable Crown                                                Stainless steel

Overall work of breathing (WOB) scores        Avg. 1.0 joules/liter

Features

First Stage

• Balanced Diaphragm
  • The balanced diaphragm mechanism allows for ease of breathing and consistent performance while protecting internal moving parts from the environment.

• Lightweight Construction
  • The Titan’s unique forged body uses less brass, making it more compact and lighter weight than other regulators.

• Polyurethane Purge Cover
  • Rugged, durable polyurethane purge cover is abrasion-resistant, tear-resistant, minimizes inhalation effort, allows easy water purging, and helps protect against shock.

• HP/MP Ports and "T" Shape
  • 2 HP ports (7/16”) and 4 MP ports (3/8”), perfectly oriented in a “T” shape for streamlined hose positioning, reduced exhalation effort, and sending bubbles out of your field of view.

• Water Retention
  • Open-yoke screw helps prevent water retention.

Second Stage

• ComfoBite
  • Comfo-Bite mouthpiece is soft yet sturdy and reduces jaw fatigue with its unique palate bridge.

• Reusable Clip
  • Perform quick and easy mouthpiece changes using the removable, reusable clip.

• Clipped Deflector
  • Simple maintenance made possible by a reduced number of components and easy access to the exhaust valve through a clipped deflector. Deflector also splits up bubbles to decrease noise and protect the valve from expiration.

• Venturi Knob
  • Easy control: the in-line ergonomic Venturi knob lets you make precise adjustments, even while wearing gloves.

• Polyurethane Purge Cover
  • Rugged, durable polyurethane purge cover is abrasion-resistant, tear-resistant, minimizes inhalation effort, allows easy water purging, and helps protect against shock.

• Material Strength
  • Made of strong polycarbonate
